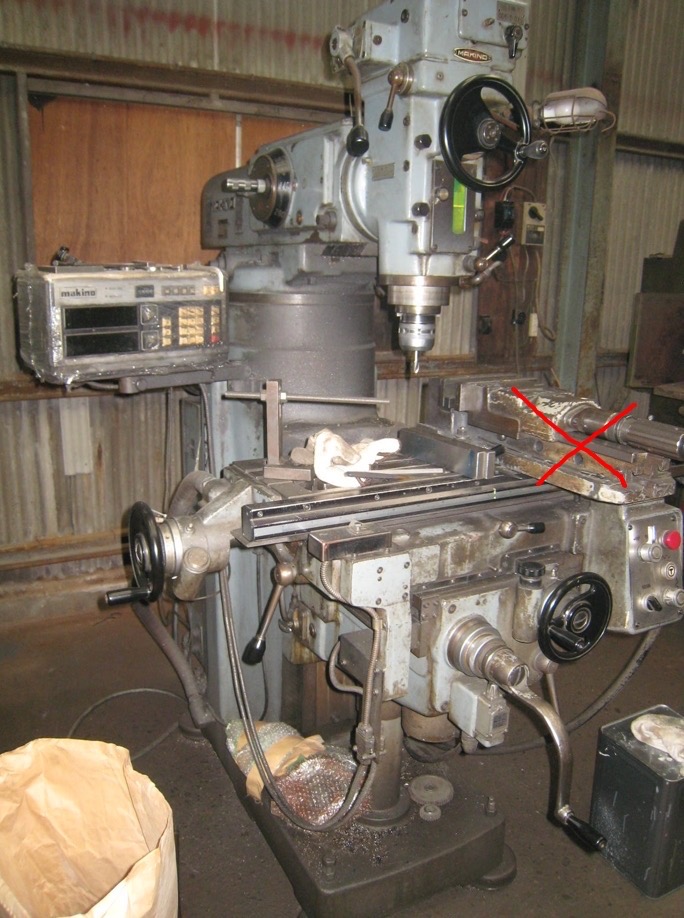

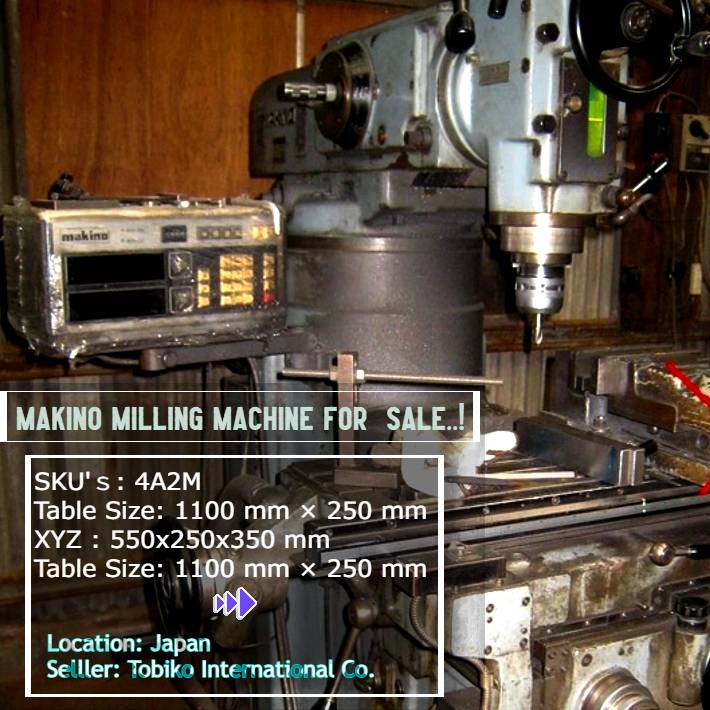

🛠️ General Specifications (Makino KGJP)
-
Table Size: 1100 mm × 250 mm
-
Travel:
-
X-axis: 550 mm
-
Y-axis: 250 mm
-
Z-axis: 350 mm
-
-
Spindle Taper: NT40
-
Spindle Speed: Typically ranges from 130 to 2200 rpm with 8-step gear change
-
Spindle Motor: Approximately 1.5 kW
-
Spindle Head Rotation: ±45° left/right
-
Quill Feed: Approximately 80 mm
-
Overarm Movement: Approximately 300 mm forward/backward
-
Distance from Spindle End to Table Top: Approximately 105 to 555 mm
